We have established ourselves as a renowned manufacturer, supplier, wholesaler and exporter of an extensive assortment of Solid Copper Earthing Rod.

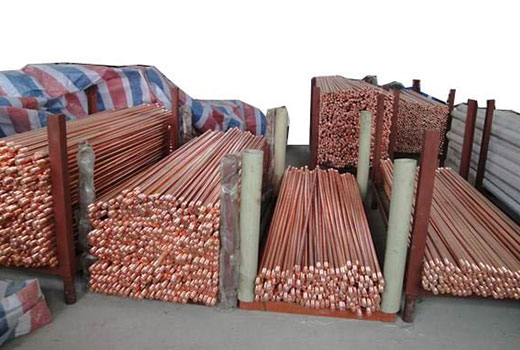

Solid copper earth rods / Ground rod is made from 99.9% pure electrolytic copper. Solid copper rods offer greater resistance to corrosion. They are ideally used in applications where soil conditions are very aggressive.
Solid copper earth rods are of two types. Externally threaded and internally threaded. Solid Copper earth rods are used where the factor of corrosion is very high and exceptionally long life is required.
- ASTM B 133 & ASTM B 187.
- Solid copper ground electrodes are used when better conductivity and corrosion resistance is preferred.
- Due to softness of solid copper, care must be taken when driving electrode.
| Rod Dia. mm |
Length in Ft |
Length in mm |
Internal Thread Dia. |
| 12 |
4 |
1200 |
M8 |
| 12.5 |
4 |
1200 |
M8 |
| 14 |
4 |
1200 |
M10 |
| 14 |
5 |
1500 |
M10 |
| 15 |
4 |
1200 |
M10 |
| 15 |
5 |
1500 |
M10 |
| 16 |
4 |
1200 |
M10 |
| 16 |
5 |
1500 |
M10 |
| 19 |
4 |
1200 |
M10 |
| 19 |
5 |
1500 |
M10 |
| 20 |
4 |
1200 |
M10 |
| 20 |
4 |
1500 |
M10 |
Even though many of our products are standard items and of Standard BS Grade, we also make special tailor made products made exactly to the requirements of our customers in terms of Material Grade and Size.
