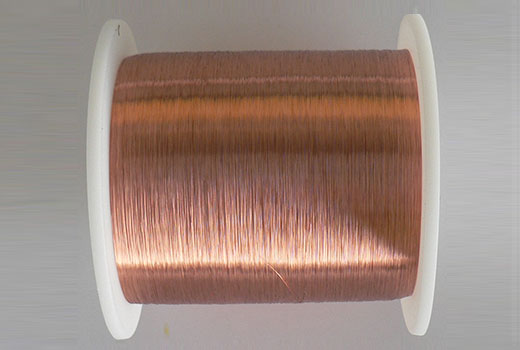

We offer superior quality and high performance range of bare copper wires. We have fine wire drawing setup for bulk production. Our bare copper wires are characterized by excellent electrical, thermal and mechanical properties and superior surface finish. These bare copper wires are available in various diameters and different dimensions.
| AWG | Nominal Diameter Inches | Nominal Diameter mm | Break Strength (1) Hard lbs. | Break Strength (1) Soft lbs | Elongation Percent Min Soft Wire (2) | Nominal Resistance Soft Bare ohm/met @ 20 C |
| 26 | 0.01594 | 0.405 | 11 | 7.0 | 20 | 40.82 |
| 25 | 0.01790 | 0.455 | 14 | 8.8 | 20 | 32.37 |
| 24 | 0.02010 | 0.511 | 17 | 11 | 20 | 25.67 |
| 23 | 0.02257 | 0.573 | 22 | 14 | 25 | 20.36 |
| 22 | 0.02535 | 0.644 | 28 | 18 | 25 | 16.14 |
| 21 | 0.02845 | 0.723 | 35 | 22 | 25 | 12.81 |
| 20 | 0.03196 | 0.812 | 44 | 28 | 25 | 10.15 |
| 19 | 0.03589 | 0.912 | 56 | 35 | 25 | 8.051 |
| 18 | 0.04030 | 1.024 | 70 | 45 | 25 | 6.386 |
| 17 | 0.04526 | 1.150 | 88 | 56 | 25 | 5.063 |
| 16 | 0.05082 | 1.291 | 112 | 71 | 25 | 4.016 |
| 15 | 0.05707 | 1.450 | 141 | 90 | 25 | 3.184 |
| 14 | 0.06408 | 1.628 | 177 | 113 | 25 | 2.526 |
| 13 | 0.07196 | 1.828 | 224 | 142 | 25 | 2.003 |
| 12 | 0.08081 | 2.053 | 282 | 180 | 25 | 1.588 |
| 11 | 0.09074 | 2.305 | 356 | 226 | 25 | 1.260 |
| 10 | 0.1019 | 2.588 | 449 | 285 | 25 | 0.9988 |
| 9 | 0.1144 | 2.906 | 565 | 360 | 30 | 0.7924 |
| 8 | 0.1285 | 3.264 | 713 | 454 | 30 | 0.6281 |
| 7 | 0.1443 | 3.665 | 899 | 572 | 30 | 0.4981 |
| 6 | 0.1620 | 4.115 | 1134 | 721 | 30 | 0.3952 |
| 5 | 0.1819 | 4.620 | 1429 | 910 | 30 | 0.3134 |
| 4 | 0.2043 | 5.189 | 1803 | 1147 | 30 | 0.2485 |
Even though many of our products are standard items and of Standard BS Grade, we also make special tailor made products made exactly to the requirements of our customers in terms of Material Grade and Size.
